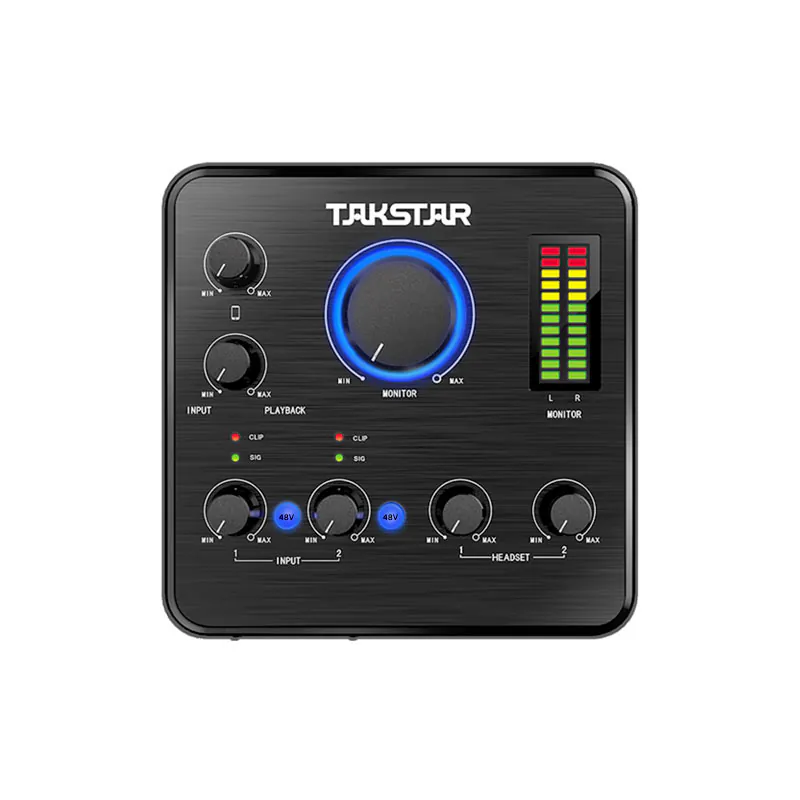

Sound Card Takstar MX-630 OTG, (24bit/96kHz, Driver WHQL/ASIO 2.0, OTG Type-C, XLR, 6.35mm)

Model

MX-630 OTG

Loại thiết bị

USB Audio Interface

Chuẩn truyền dữ liệu

USB 2.0

Sample Rate

44,1 đến 96kHz

Bit Depth

24bit

Driver

ASIO 2.0

Hệ điều hành tương thích

Windows, macOS, iOS, Android

Mic/Line In 1-2

20Hz đến 20kHz ±1dB

Dynamic Range Mic/Line In

80dB A-weighted

S/N Mic/Line In

75dB A-weighted

THD + Noise Mic/Line In

<0,025% (-72dB)

Intermodulation Distortion

-77dB @ 1kHz

Input Impedance

Inst In: 6,8kΩ; Mic In: 6,8kΩ

Adjustable Gain

>50dB

Gain Range

+54dB

Line/Accompaniment 3-4

20Hz đến 20kHz ±1dB

S/N Line/Accompaniment

100dB A-weighted

Dynamic Range Line/Accompaniment

97dB A-weighted

THD + Noise Line/Accompaniment

<0,0031% (-90dB)

Max Input Level

+0dB, gain 0dB

Headphone Out 1-2

20Hz đến 20kHz ±1dB

Dynamic Range Headphone

99dB A-weighted

S/N Headphone

103dB A-weighted

THD + Noise Headphone

<0,0056% (-85dB)

Công suất Headphone

90mW/100Ω

Output Impedance Headphone

75Ω

Load Impedance Headphone

32 đến 600Ω

Line Out L/R

20Hz đến 20kHz ±1dB

Dynamic Range Line Out

98dB A-weighted

S/N Line Out

102dB A-weighted

THD + Noise Line Out

<0,0125% (-78dB)

Intermodulation Distortion Line Out

-65dB @ 1kHz

Output Impedance Line Out

75Ω

Load Impedance Line Out

32 đến 600Ω

Max Output Level

+1,2dBV

Cell Phone Connector

3,5mm

Accompaniment Connector

3,5mm

Mic Connector 1-2

XLR + 6,35mm

Headphone Connector 1-2

6,35mm

Speaker Connector

6,35mm L + R

Power Supply

DC 12V 1A

Data Connector

USB 2.0

OTG Port

Type C

Nhiệt độ hoạt động

0 đến 40°C

Kích thước

140 x 140 x 33,5mm

Trọng lượng

Khoảng 465g
