THÔNG TIN SẢN PHẨM LOA HỘI TRƯỜNG JBL STX815M
A single 15" lightweight two-way system designed to function as a high-power handling, FOH loudspeaker system or as an extended range floor monitor, it offers an extremely high level of performance either ground, pole or stand mounted. A 70 degree by 70 degree coverage angle for focused directivity control.

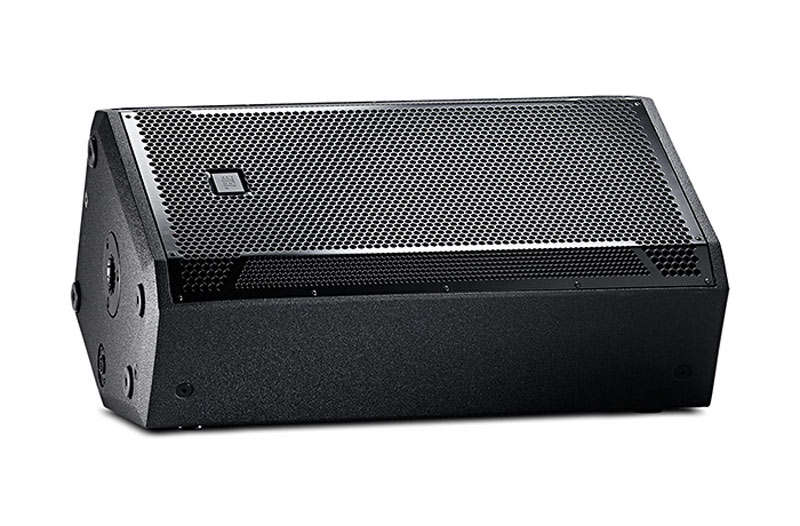

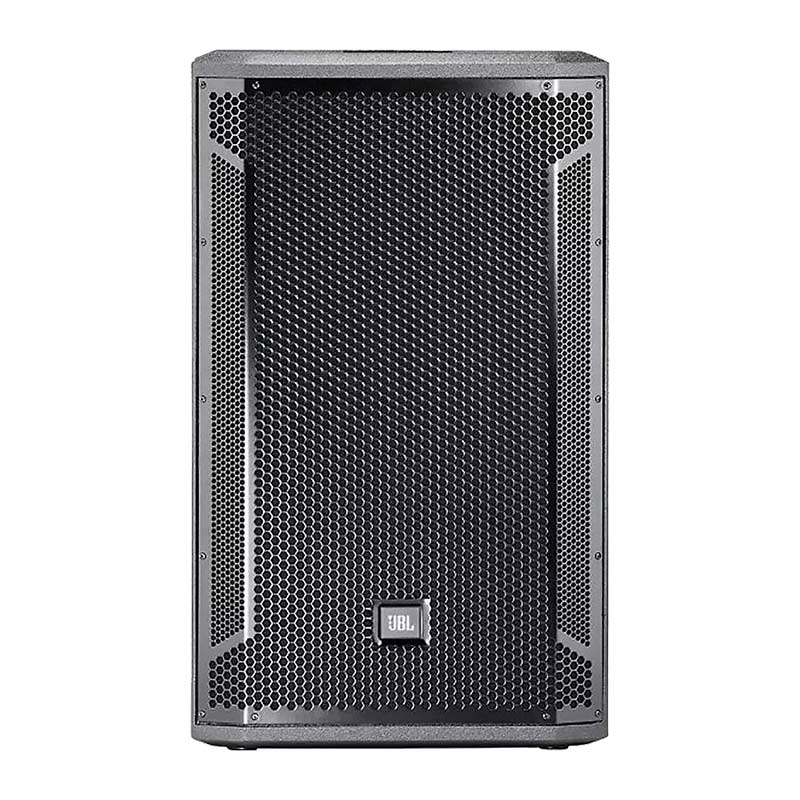

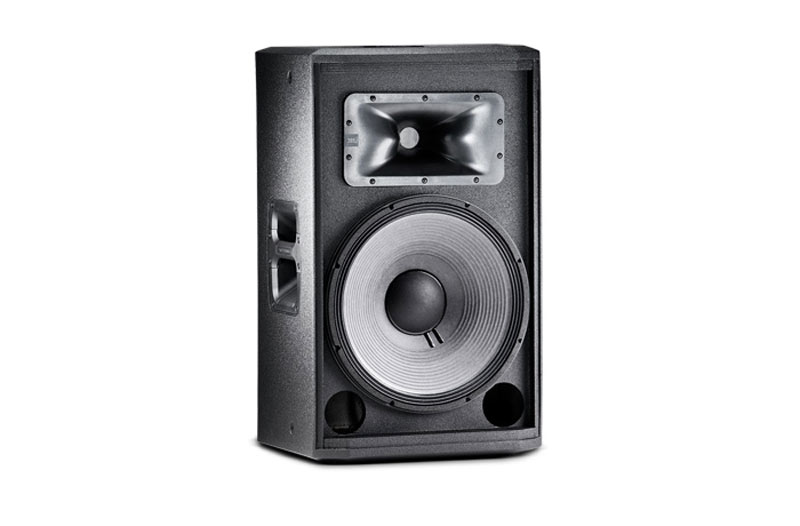

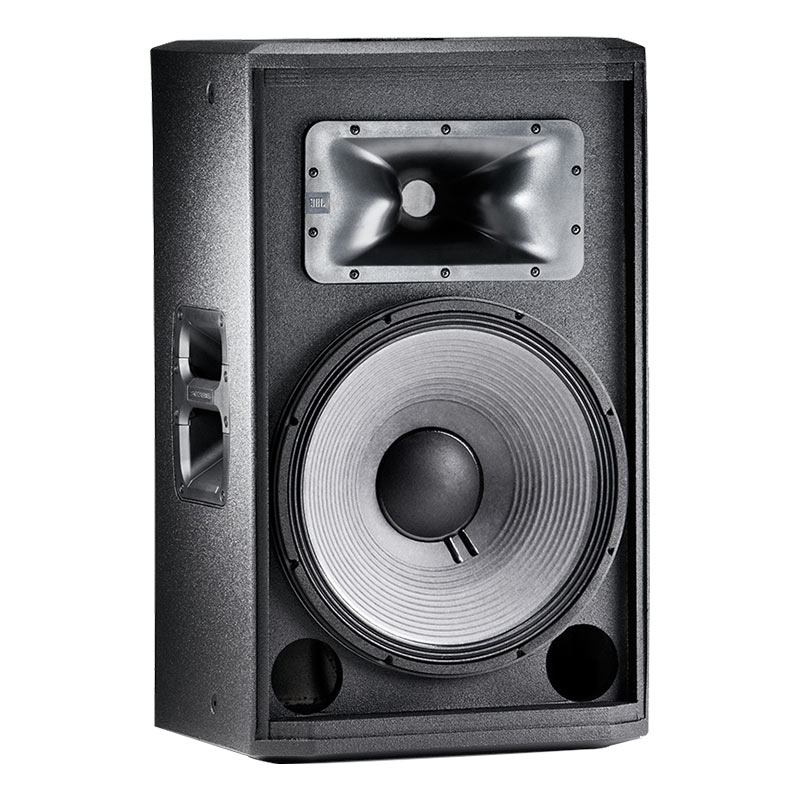

Hình ảnh Loa hội trường JBL STX815M.
loa hội trường JBL STX815M
Compact and low-profile for minimal obstruction of audience sight-lines.
70°x 70° nominal coverage.
Bi-amplified or full-range passive operation.
Pole socket for applications requiring pole or tripod mounting.
Twelve M10 suspension points.
High power handling, low distortion Vented Gap Cooling™ LF driver.
3 in. (diaphragm) neodymium magnet compression driver.
Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
14-Gauge steel grille lined with acoustically transparent cloth.
Thông số kỹ thuật Loa hội trường JBL STX815M.
Frequency Range ( –10 dB) 41 Hz-20 kHz
Frequency Response (± 3 dB) 55 Hz-20 kHz
Coverage Pattern 70˚ × 70˚ nominal
Sensitivity (1W/1m) 96 dB
Power Rating 800 W / 1600 W / 3200 W
Rated Maximum SPL 131 dB SPL Peak
Nominal Impedance 8Ω
Input Connectors Two NL4
Operational Modes Full Range/Bi-Amp
Dimensions (H x W x D) 721 mm x 436 mm x 329 mm
(28.4" x 17.2" x 13.0")
Net Weight 26 kg (58 lbs)
